- Connect Mini-PDL
- Open CB "B2"

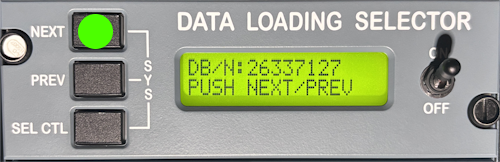

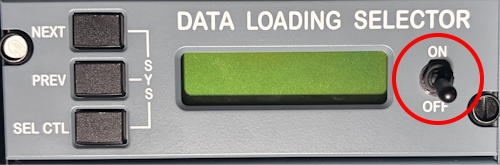

- switch Data Loading Selecor PNL "ON"

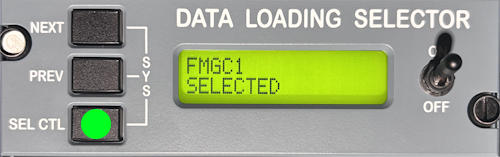

- press "NEXT" until FMGC 1 appears

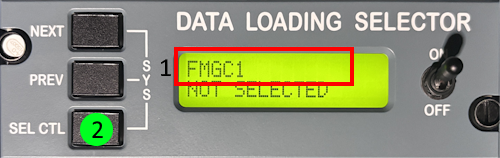

- press "SEL CTL" to sel FMGC 1

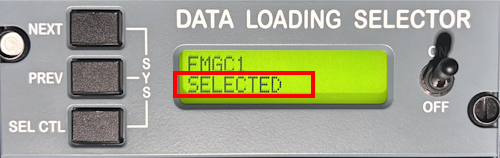

- FMGC 1 is selected

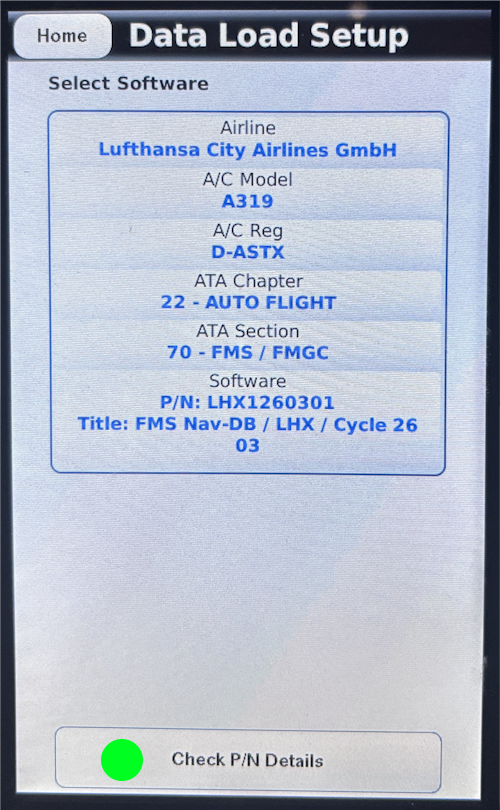

- select Software on Mini-PDL

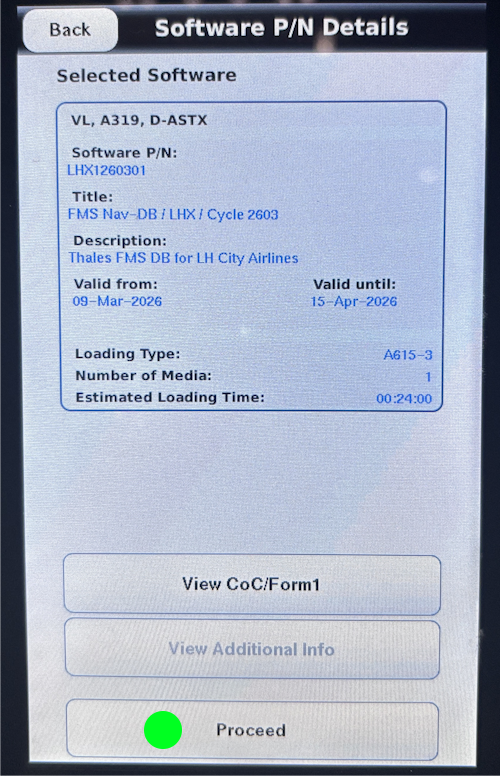

- select "Check P/N Details"
- select "Proceed"

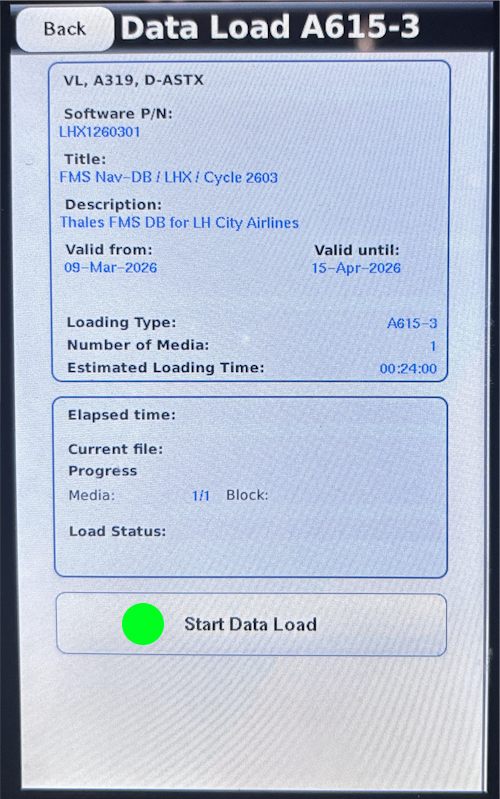

- select "Start Data Load"

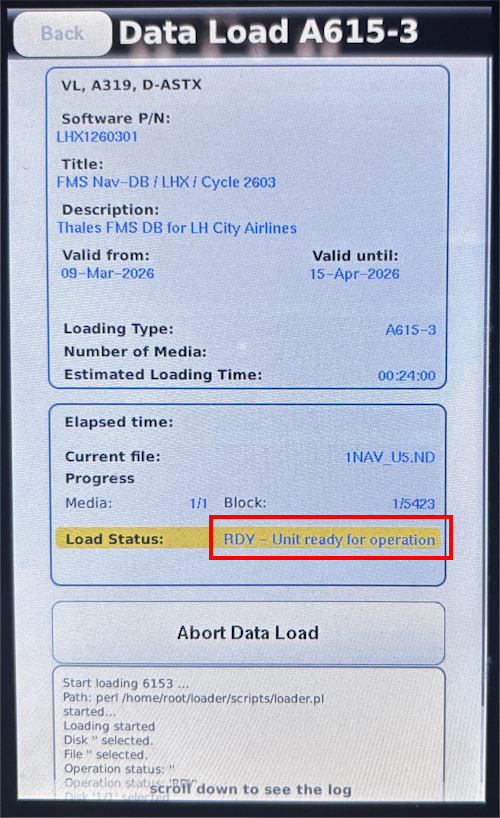

- wait unitl "RDY - Unit ready for operation" appears

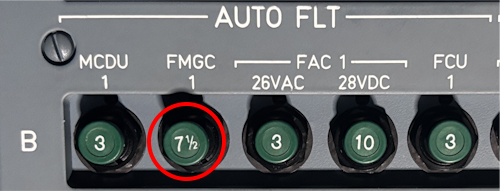

- close CB 49VU-B02 FMGC 1

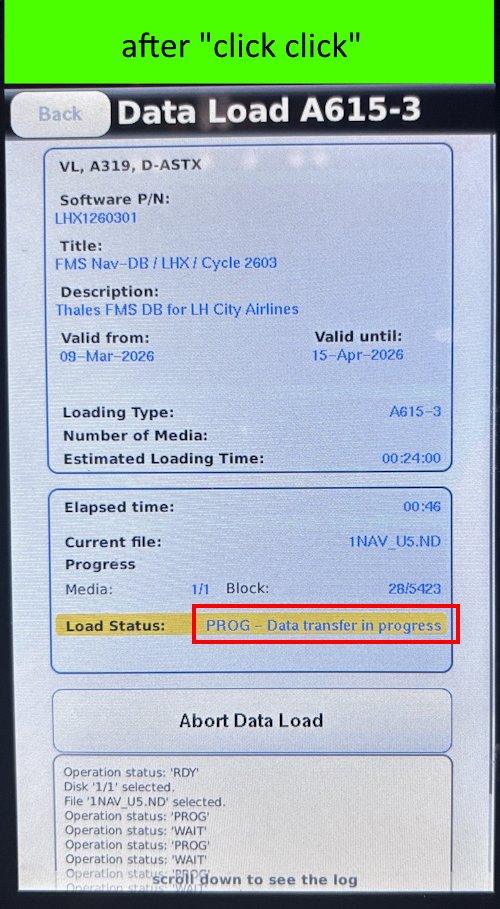

- after "click click" Mini-PDL starts Data Load

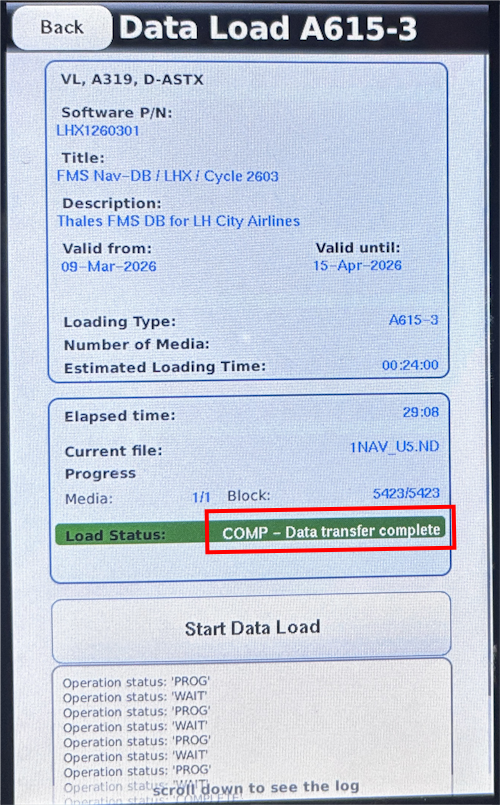

- "COMP - Data transfer complete" -> Upload is completed
- press "SEL CTL" to deselect FMGC 1

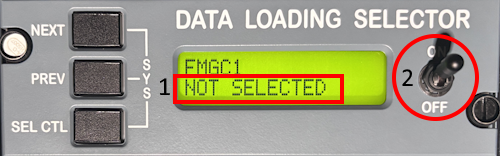

- FMGC 1 "not selected" -> switch DLSP OFF
- reset CB 49VU-B02 FMGC 1 for 5 sec
- after "click click" Sound of FMGC 1

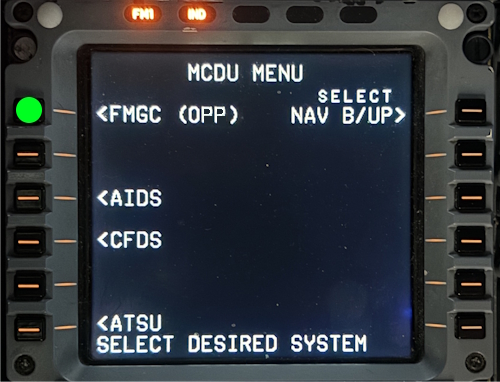

- On MCDU 1 select LSK 1L FMGC

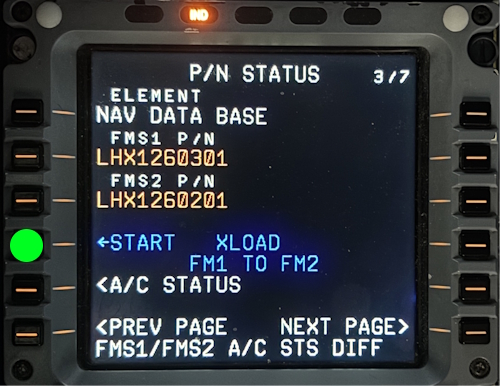

- select LSK 4L "START XLOAD"

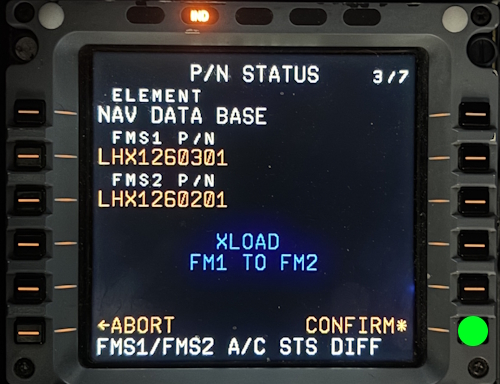

- select LSK 6R "CONFIRM"

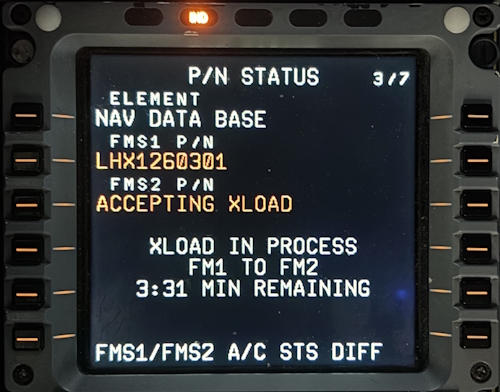

- X-Load starts

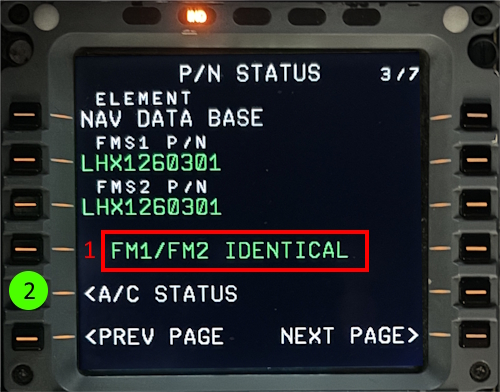

- Load finished "FM1 / FM 2 IDENTICAL" is displayed
- select LSK 5L "A/C STATUS"

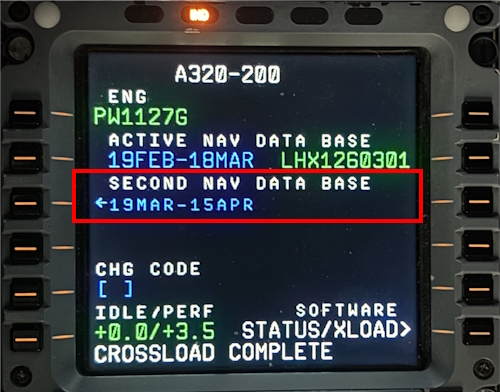

- Check "SECOND NAV DATA BASE"

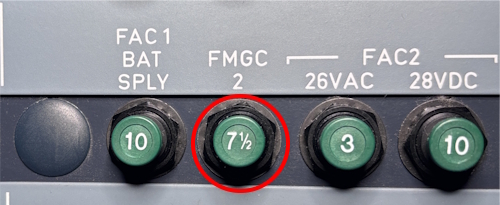

- reset 121VU-M17 FMGC 2 for 5 sec
