A320 neo

Maintenance

22

FMS upload ADLU (USB Stick)

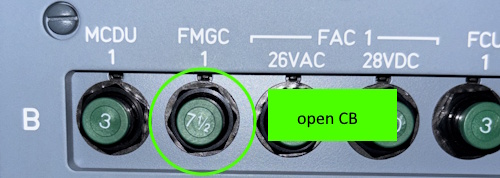

  1. Open CB "49VU-B02 FMGC 1"

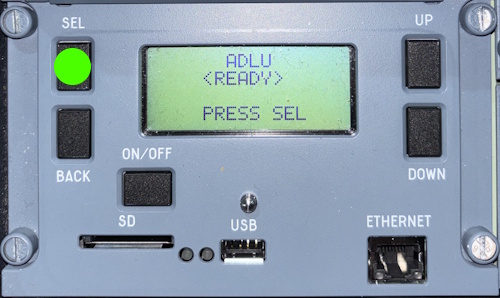

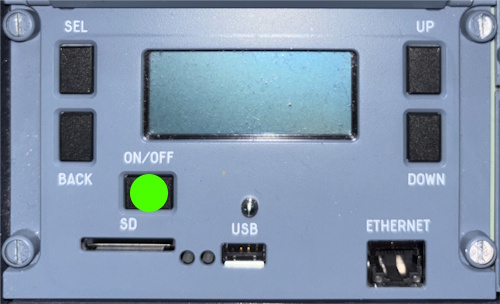

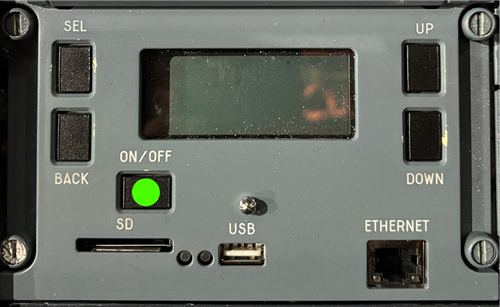

  2. switch ADLU "ON"

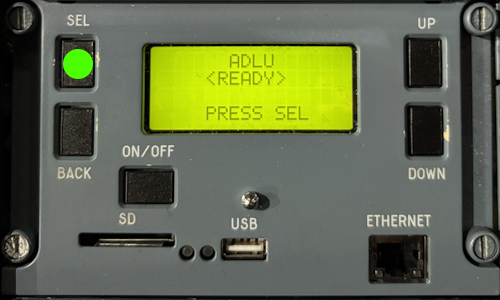

  3. Press "SEL"

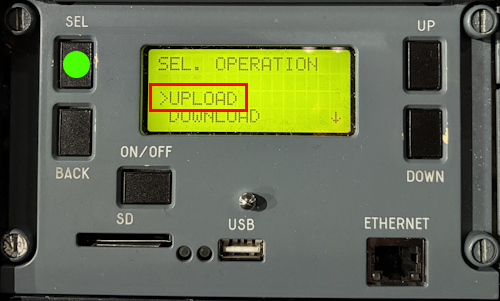

  4. Select ">Upload"
  5. Press "SEL"

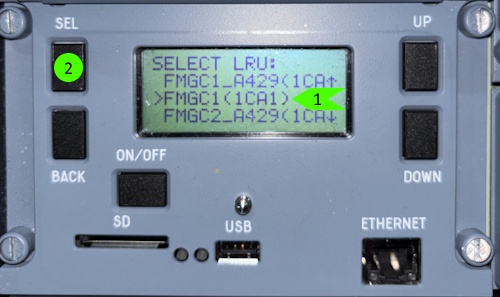

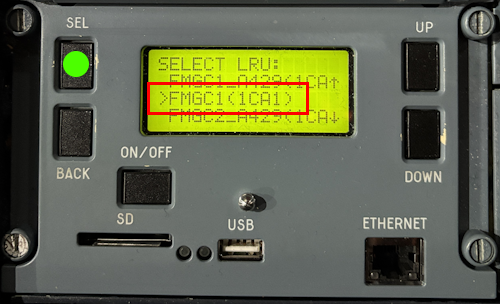

  6. Select "FMGC1(1CA1)"
  7. Press "SEL"

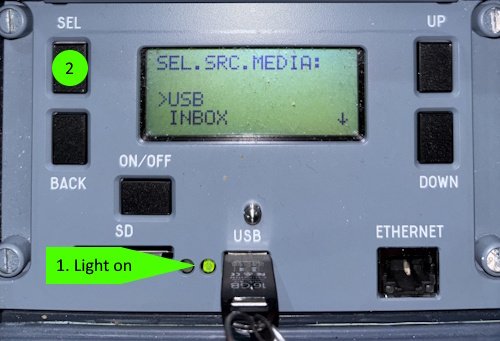

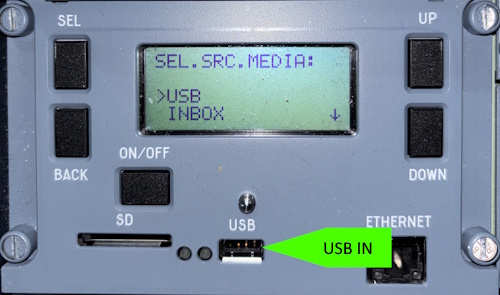

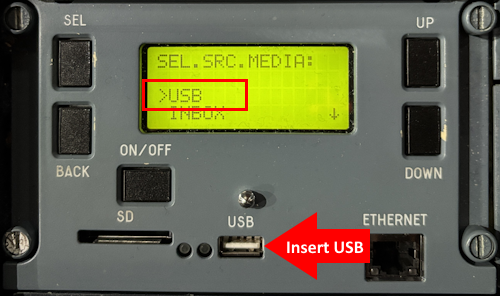

  8. Select USB
  9. Insert USB

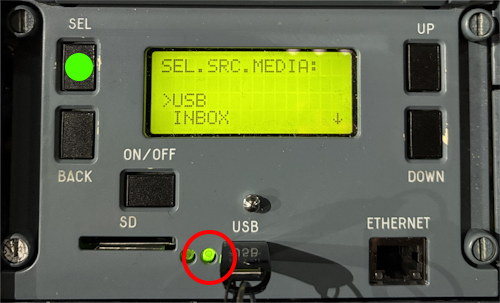

  10. After green LED comes on
  11. Press "SEL"

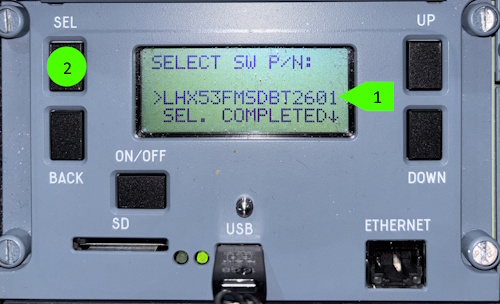

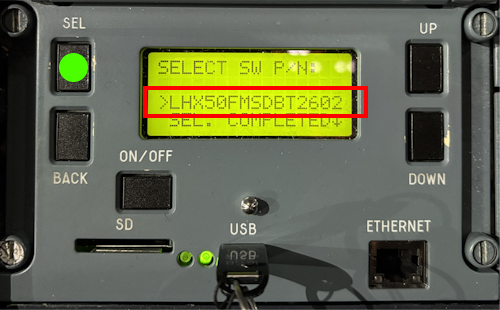

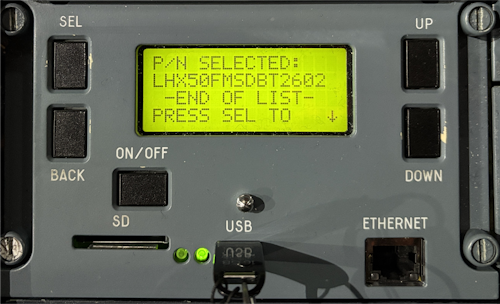

  12. Select your update file
  13. Press "SEL"

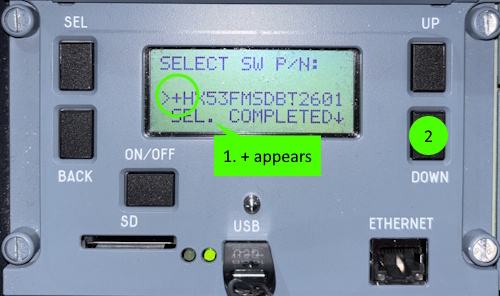

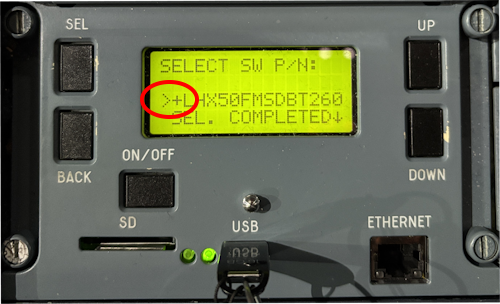

  14. "+" appears

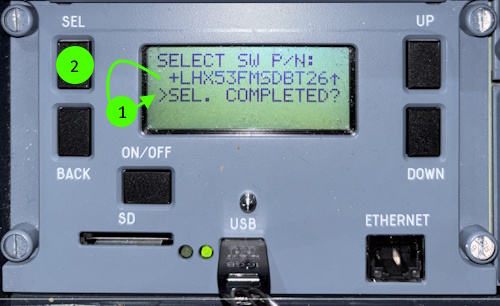

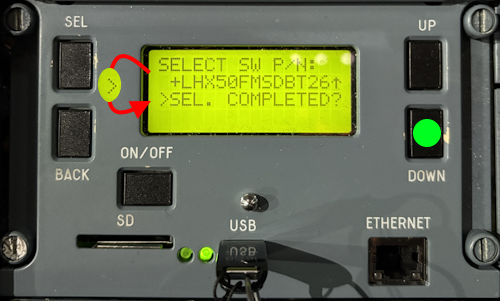

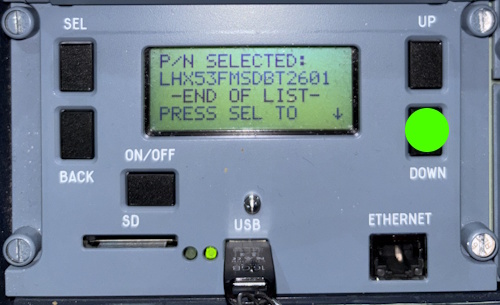

  15. Press "Down"
  16. ">" jumps down

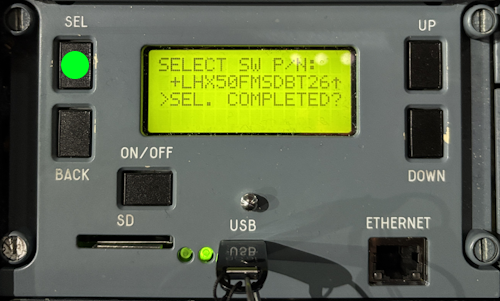

  17. Press "SEL"

  18. Now ADLU ready for upload

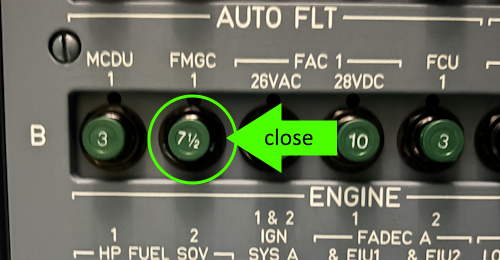

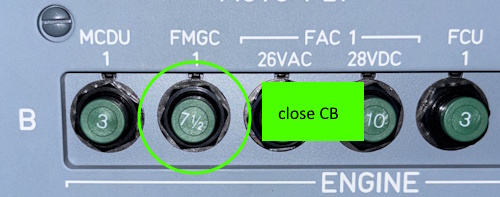

  19. Close CB "49VU-B02 FMGC 1"

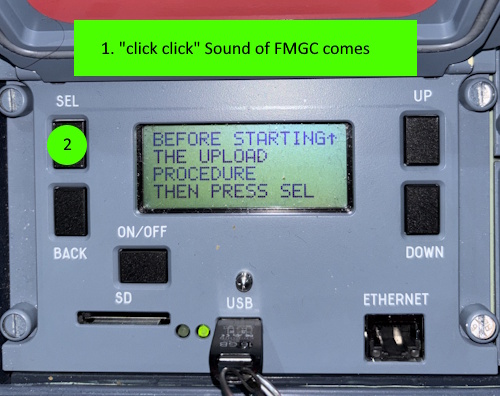

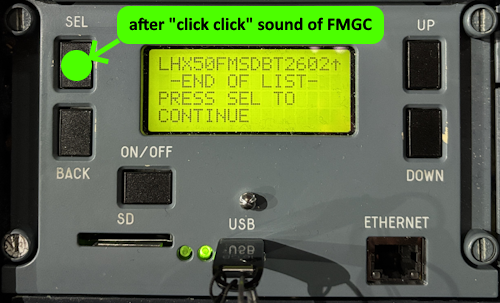

  20. after "click click" Sound
  21. Press "SEL"

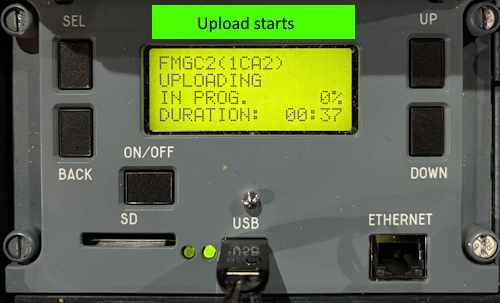

  22. Upload starts

  23. Upload is finished

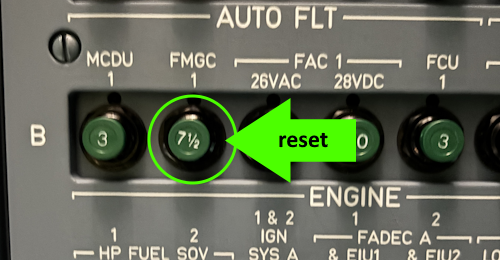

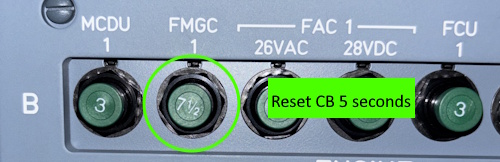

  24. Reset CB "49VU-B02" for 5 seconds

  25. After "click click" Sound of FMGC 1

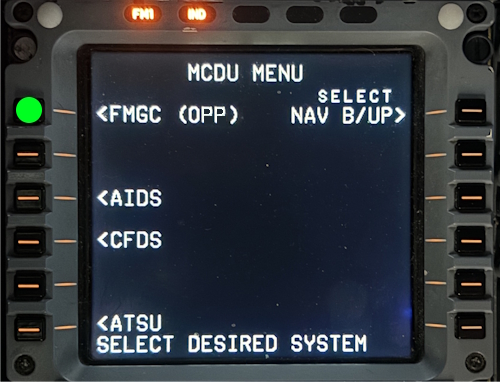

  26. On MCDU 1 select LSK 1L FMGC

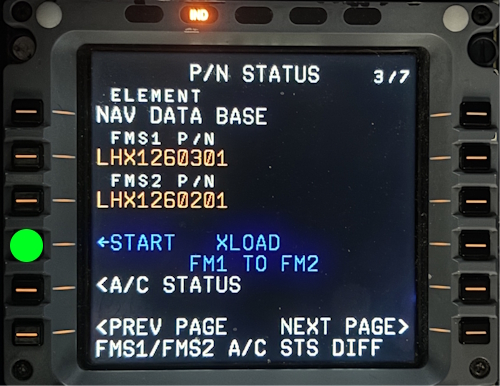

  27. select LSK 4L "START XLOAD"

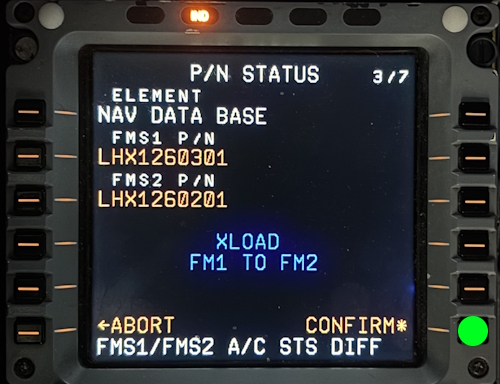

  28. select LSK 6R "CONFIRM"

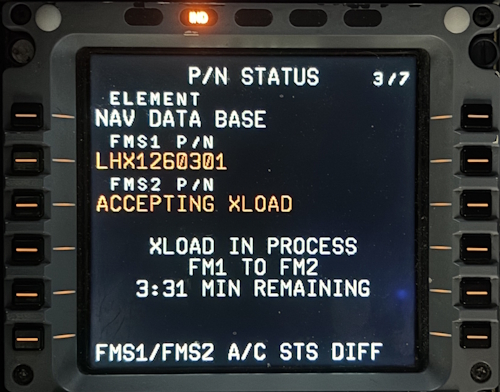

  29. X-Load starts

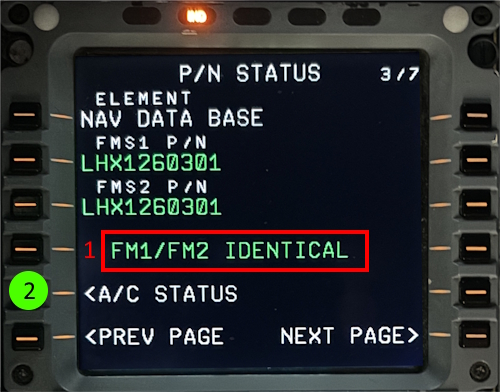

  30. Load finished "FM1 / FM 2 IDENTICAL" is displayed
  31. select LSK 5L "A/C STATUS"

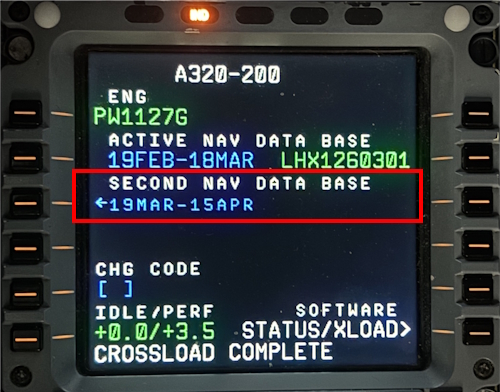

  32. Check SECOND NAV DATA BASE

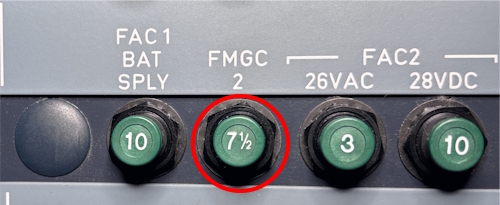

  33. reset 121VU-M17 FMGC 2 for 5 sec
