EFB Bravo Fleet

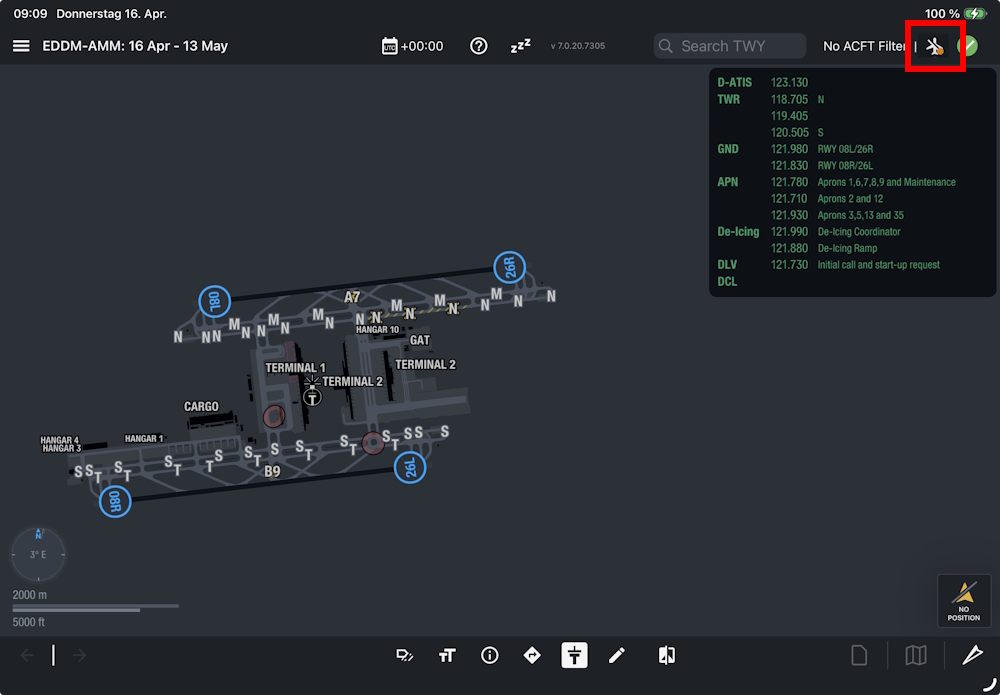

NO A/C Position

  1. ADIRU 1 - 3 aligned

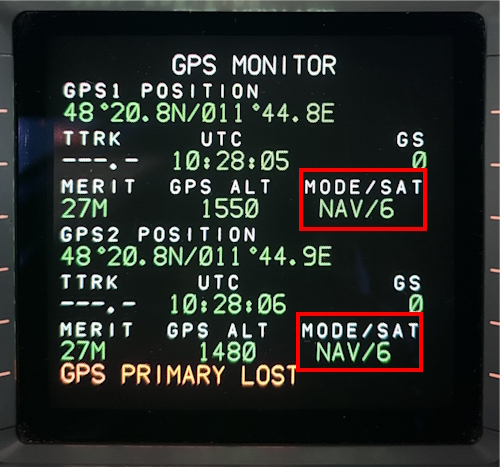

  2. GPS 1 and 2 "NAV"
  3. I-Pad connected

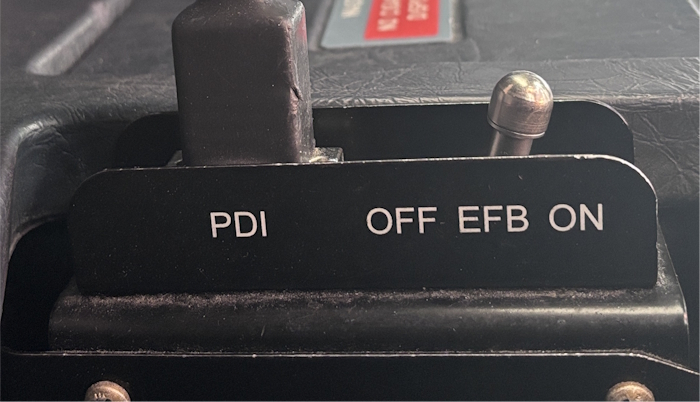

  4. EFB "on"

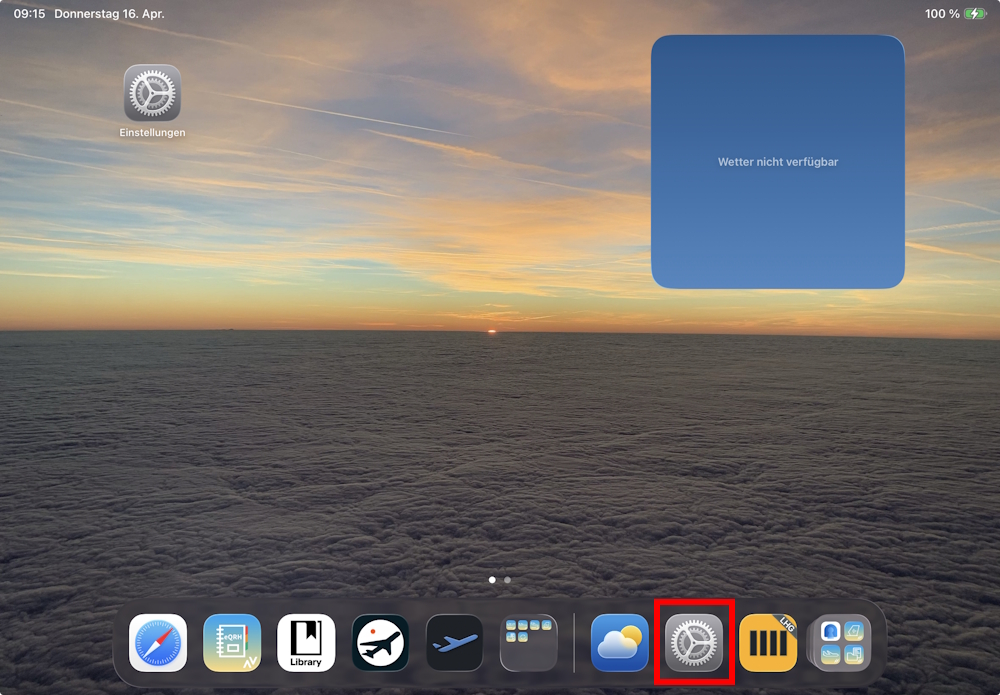

  5. select "Einstellungen"

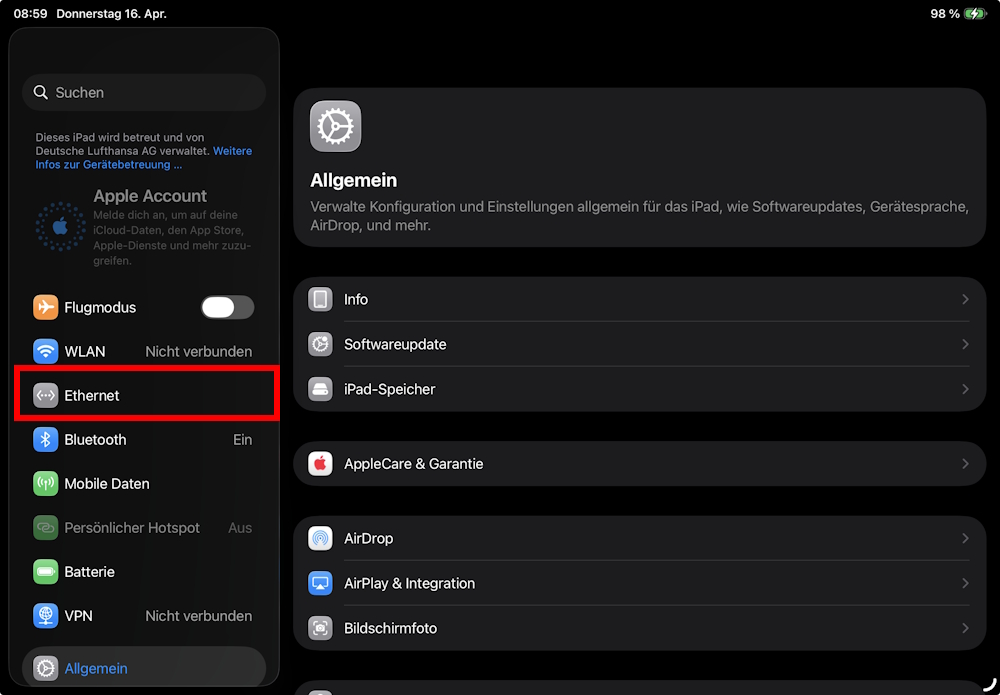

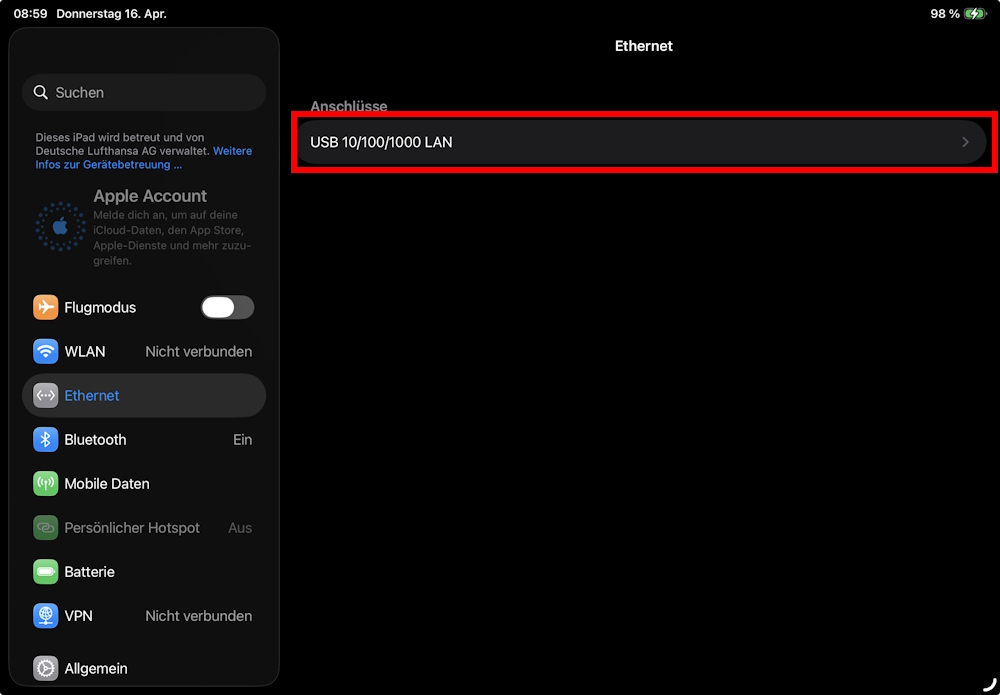

  6. select "Ethernet"
  7. select "USB 10/100/1000 LAN"

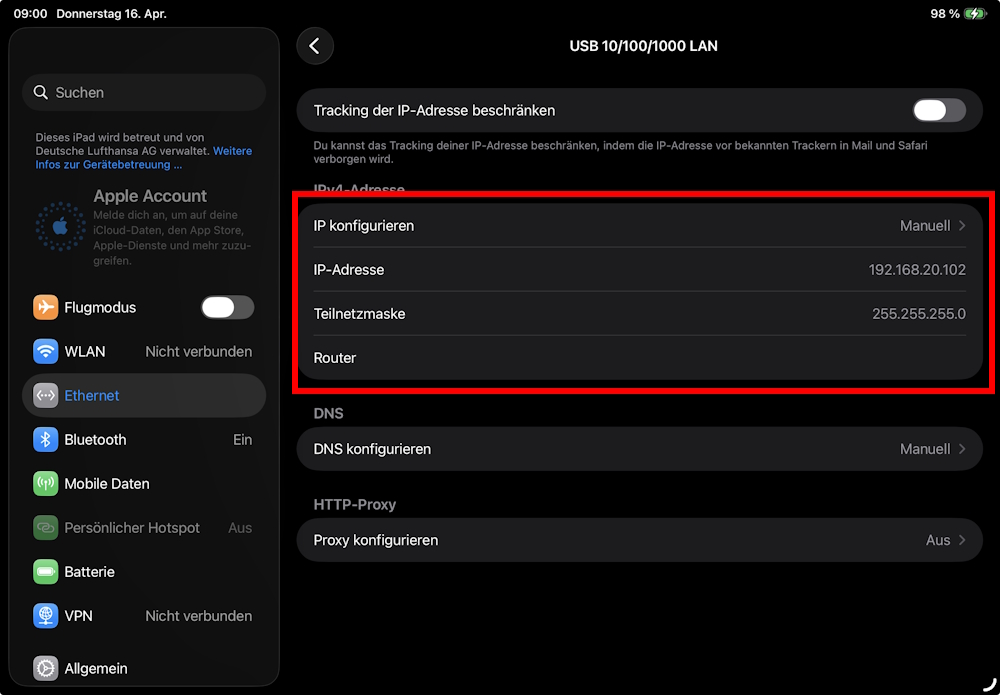

  8. set IP konfigurieren > "Manuell"
    set IP-Adresse > 192.168.20.101 (for Pilot I-Pad)
    or 192.168.20.102 (for Copilot I-Pad)
    set Teilnetzmaske > 255.255.255.0

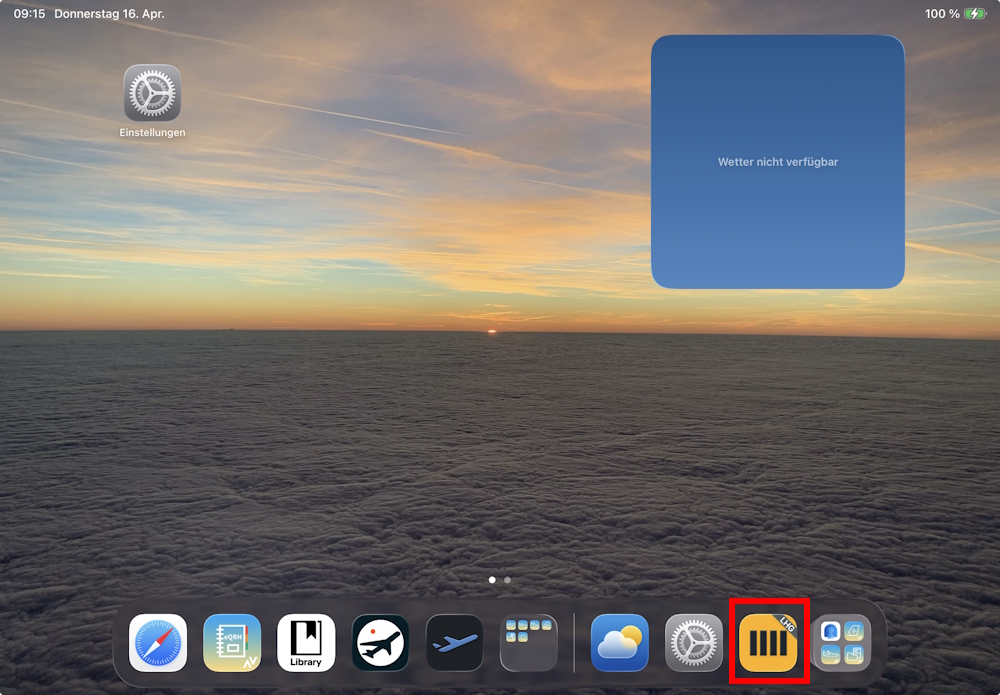

  9. select "LIDO" App

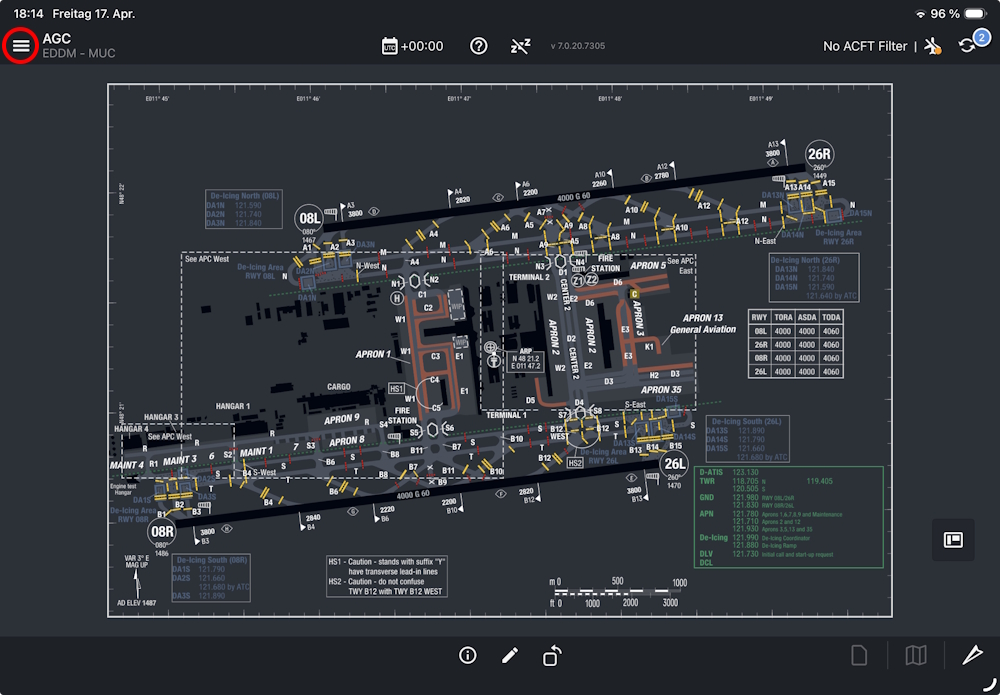

  10. select Menu

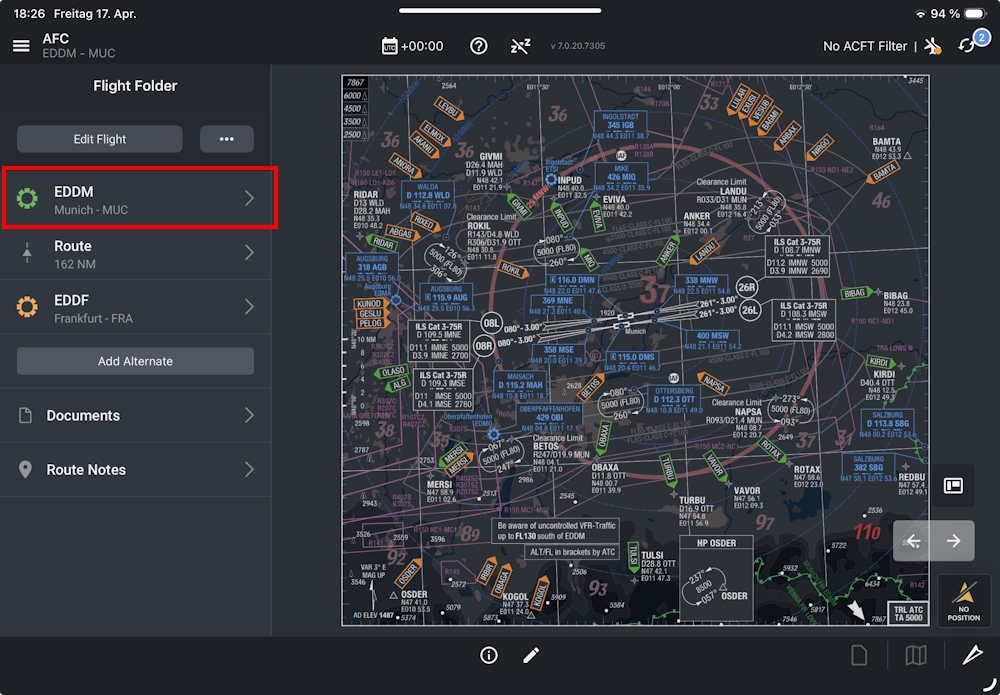

  11. select Airport

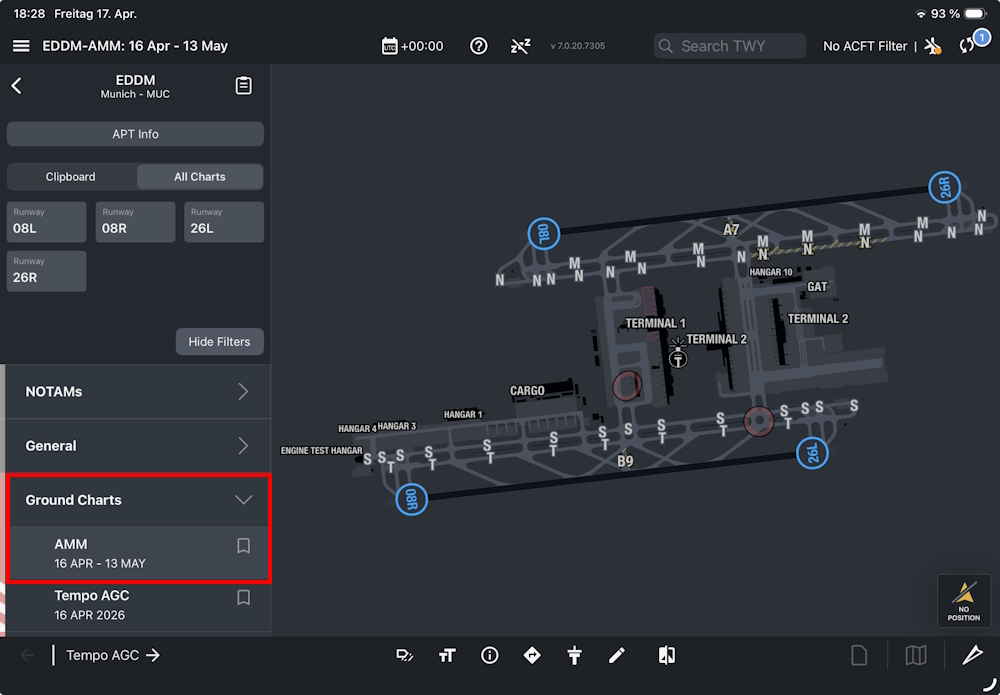

  12. select Ground Charts > AMM
  13. Select Aircraft

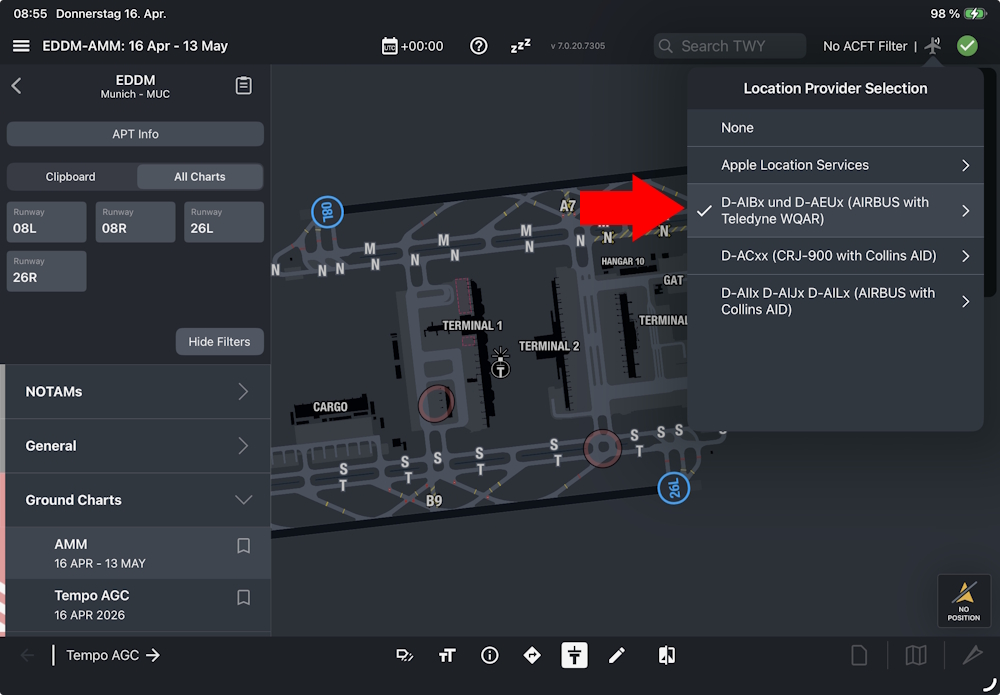

  14. Check Provider for "Bravo Fleet"
  15. Go "Back" to select right Provider
  16. Select now right Provider

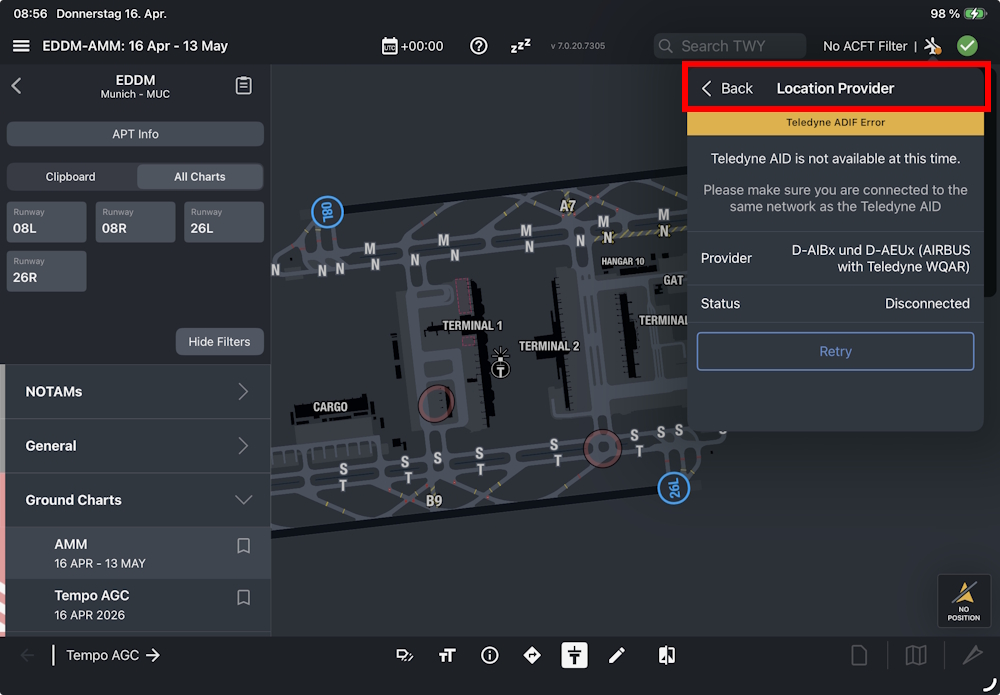

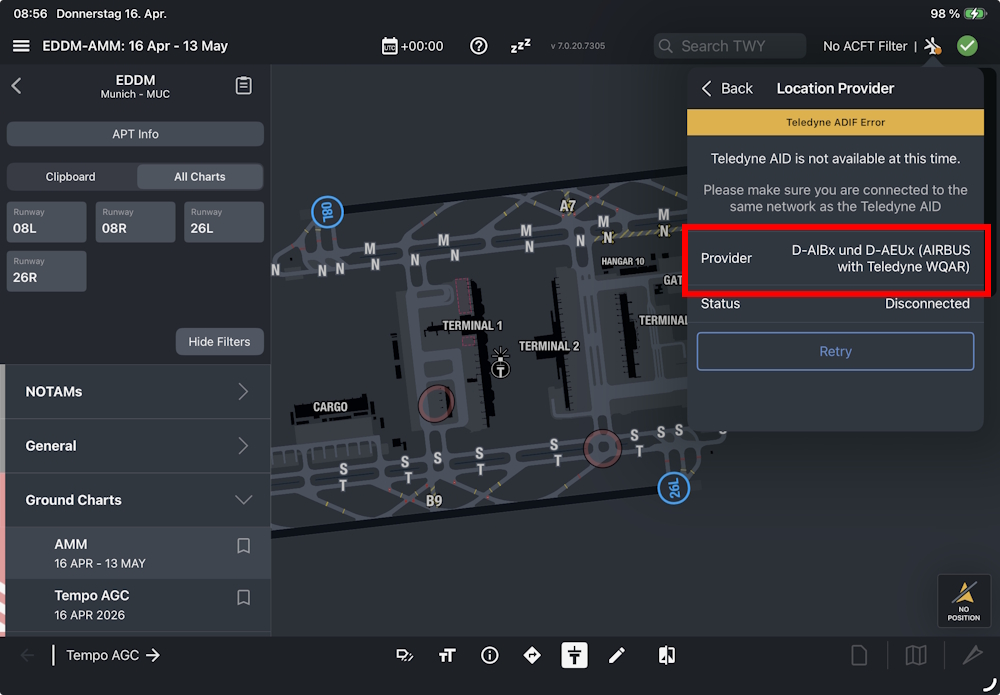

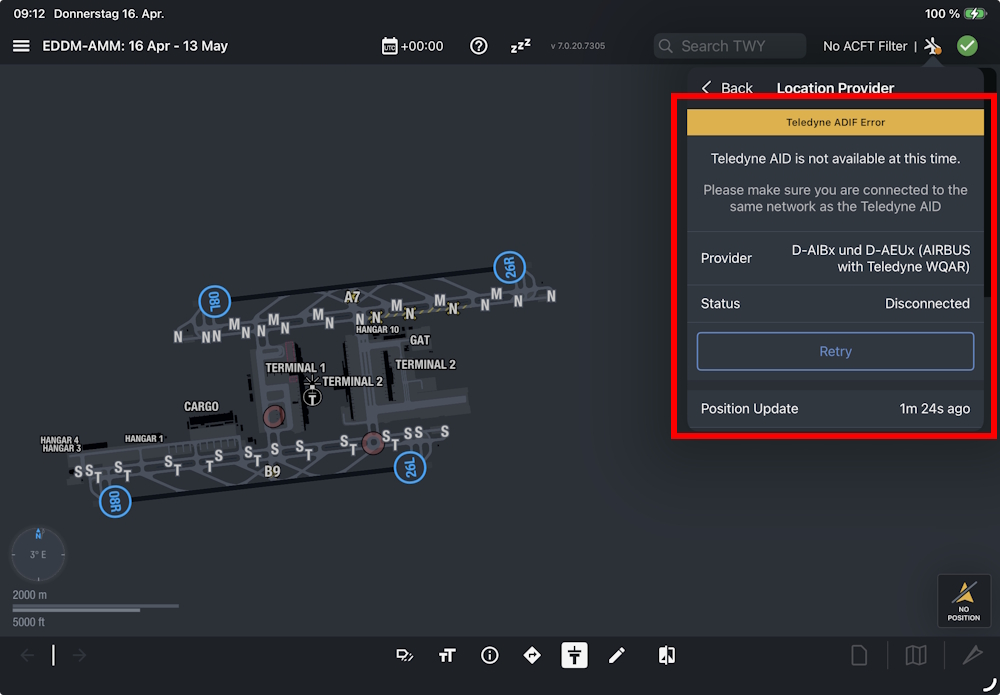

  17. If now "Teledyne ADIF ERROR" and
    Status "Disconnected"

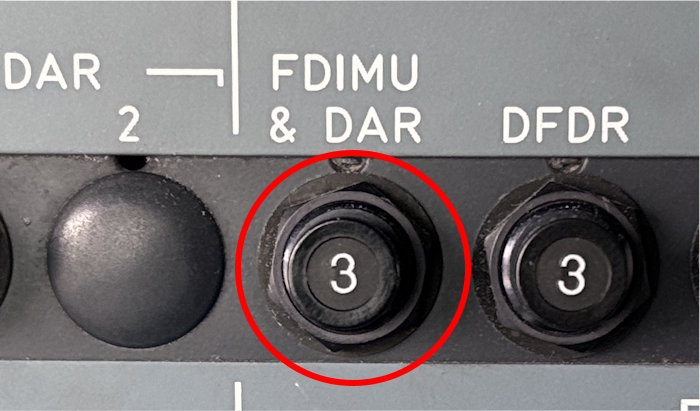

  18. Reset CB "121VU K15 FDMIU & DAR" for 30 sec
  19. Wait 1 Minute

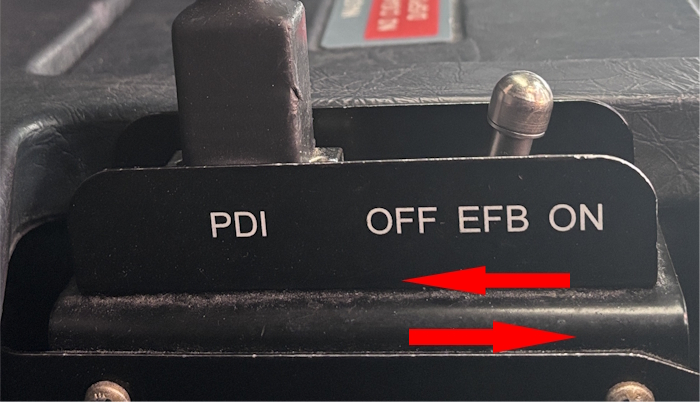

  20. Reset EFB "OFF - On" for 15 sec

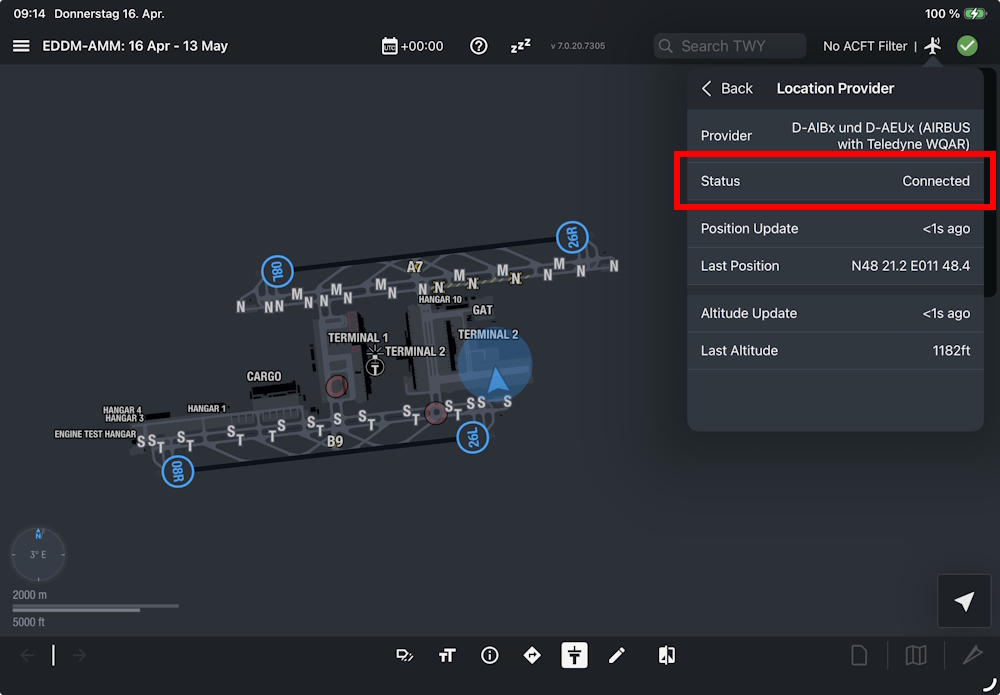

  21. Wait 1 Minute > EFB Status "Connected"

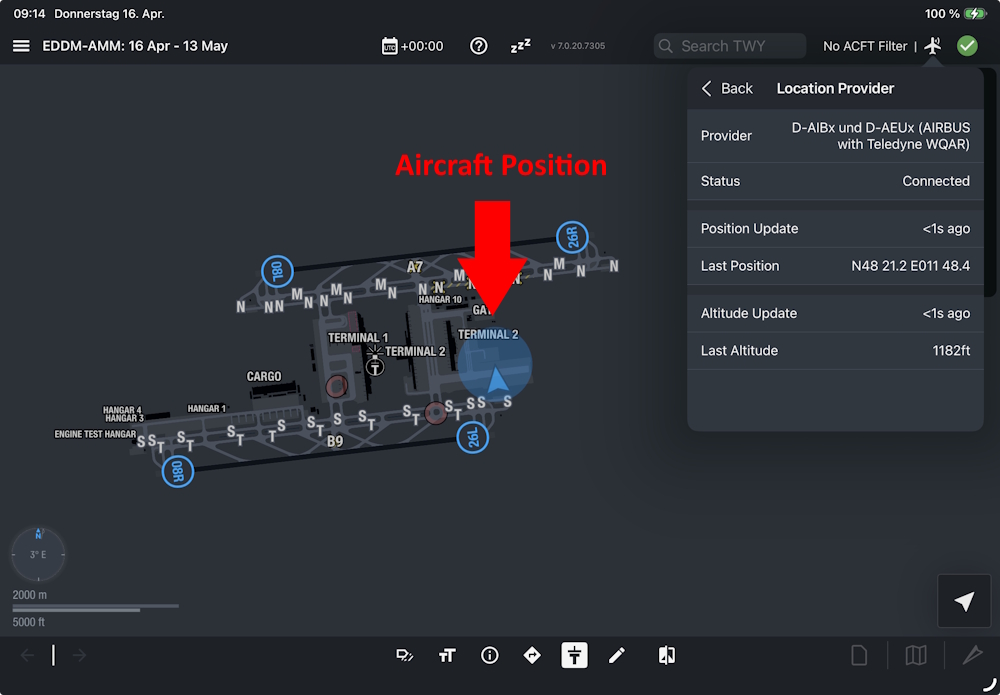

  22. A/C Postion is shown
    23. Test acc 1320-AMMS-A320 Rev02
